Looking for an inexpensive way to support a booming tomato garden? With only eight 2x4s, a handful of screws, and some string, we can create a sturdy, 8-foot-tall tomato trellis that holds up to 30–40 plants.
It’s simple, budget-friendly, and surprisingly efficient—perfect for maximizing space in a backyard garden.
Why This Plan Works
- Supports up to 30–40 tomato plants in a compact layout
- Requires just eight 2x4s—costing around $20
- Uses basic tools and materials
- Simple to build, even for beginner DIYers
- Easily scalable and adjustable for different garden sizes
What You Will Need
- 8 standard 2×4 boards
- Screws
- Garden string or twine
- Hand saw or rotary saw
- Table saw (or access to one)
- Measuring tape
- Power drill
Step 1: Rip the 2x4s
Use a table saw to rip each of the eight 2x4s in half lengthwise, turning them into sixteen 2x2s. Remember that standard 2x4s typically measure about 1.5″ x 3.5″, so set the table saw guard to around 1.25″ to split them evenly.
If you don’t have a table saw at home, consider using a local workshop space. For example, we used TechShop’s facilities for our cuts and assembled the frame at home.
Step 2: Lay Out the Boards
Each side of the trellis frame requires seven 2x2s. Lay out six vertical and angled pieces per side on the ground to visualize the structure. The seventh board will run horizontally across the base to brace the diagonal supports.
At this point, all boards can be joined directly with screws, but for a neater look, the next step includes optional angled cuts.
Step 3: Cut Some Angles and Screw Everything Together
To create clean joints, we recommend cutting a few angles. The two diagonal boards that meet at the top should each be 96″ long (8 feet). At a 45-degree angle, these connect 67 7/8″ down the two vertical supports.
Cut the top ends of the diagonal boards so they form a smooth peak at approximately 135 ¾” across the top.
Begin assembly by driving in one screw per joint. This keeps the frame flexible enough to rotate and align properly.
Once everything is squared up visually (no need for a carpenter’s square), go back and reinforce each joint with additional screws.
Tip: Using only one screw per joint at first allows easy adjustments. Once aligned, secure everything with extra screws for strength.
Step 4: Screw the Tops of the Frame Pieces Together, and Hang Strings
Now it’s time to connect both frame sides at the top. Use crosspieces on each side for added stability. You can paint or stain the wood at this stage if you want a more polished look or added weather protection.
Next, hang garden twine or string from the top beam down to the ground. These vertical strings will support your tomato plants as they grow. Secure the bottom of each string into the soil or tie to stakes.
Note: If you need guidance on how to attach your tomato plants to the string, several helpful tutorials on YouTube can show you exactly how—it’s a common method used in vertical tomato gardening.
Other Details Display
- Estimated Cost: Around $20 for the wood
- Material Used: 8 standard 2x4s, cut into sixteen 2x2s
- Final Height: 8 feet
- Total Length of Top Beam: 135 ¾ inches
- Cut Angles: 45-degree cuts for diagonal boards
- Plant Capacity: Supports 30–40 tomato plants
- Assembly Time: Approx. 2–4 hours depending on experience
- Optional Finish: Paint or stain for added durability
- Support Method: Garden string for vertical plant support
Summary

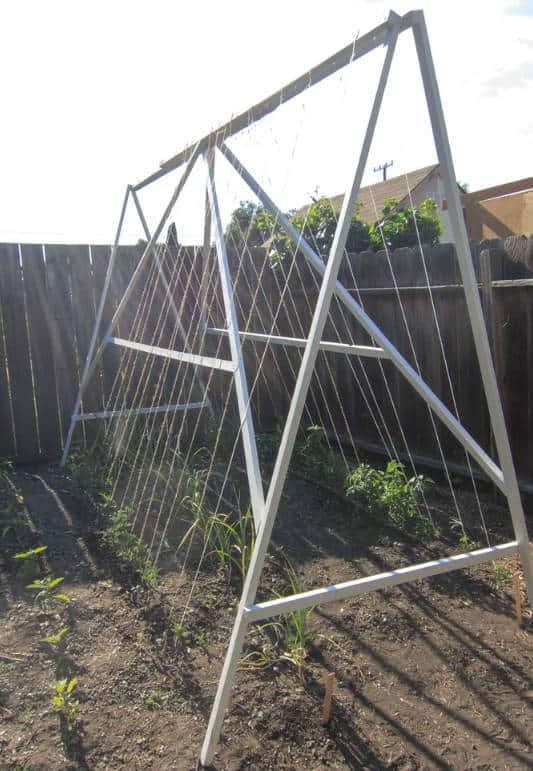

This DIY tomato trellis is the perfect solution for growing 30 to 40 plants in a compact vertical space.
With a budget of around $20 and basic tools, we can create a strong, 8-foot-high structure that keeps tomato plants healthy, upright, and easy to harvest.
If you’re looking for a practical, scalable gardening solution, this tomato trellis plan is a must-try.
This plan is a contribution by [dee_eye_why]. Project Via Instructables – Get the PDF Instructions here.
