13 DIY Hose Reel Plans

If you’re tired of dealing with tangled extension cords and hoses, or you simply want to keep your space cleaner, you might be interested in these DIY hose reel plans. These plans are both affordable and easy to follow, so you can create the perfect hose reel without spending a lot of money. Unlike the plastic, round toolbox-type reels you might find at a hardware store, these designs are simple and practical, and they can be used for years to come.

With our selection of DIY hose reel projects, you can choose the perfect plan for your needs and create useful equipment that will make your life easier. Whether you’re an experienced DIY enthusiast or a beginner looking to try something new, these plans are sure to be a great fit for you.

Air Compressor Cart

Air Compressor Cart

If you’re looking for a way to keep your air compressor and hose organized and easily accessible, an air compressor cart is a great option. This cart is made with a heavy-duty steel frame and anti-tilt legs, ensuring that your compressor stays firmly in place. The rubber bumpers on each corner also help to prevent any damage to your compressor.

This cart can support up to a 15-hp unit and comes equipped with a 2.5-gallon air tank, so you don’t need to worry about finding one on your own. The cart also features metal side rails and a wooden bottom, providing added durability.

To build this cart, you’ll need a few materials, including lag screws, nuts, washers, closet dowel, ½ plywood, air hose reel, caster wheels, and ¾ plywood. You’ll also need some basic tools, such as a drill, circular saw, and jigsaw. The difficulty level is rated as easy, so even those with limited DIY experience should be able to complete this project without any issues.

Overall, an air compressor cart is a great investment for anyone who uses an air compressor regularly. It keeps your equipment organized and easily accessible, while also providing added protection and durability.

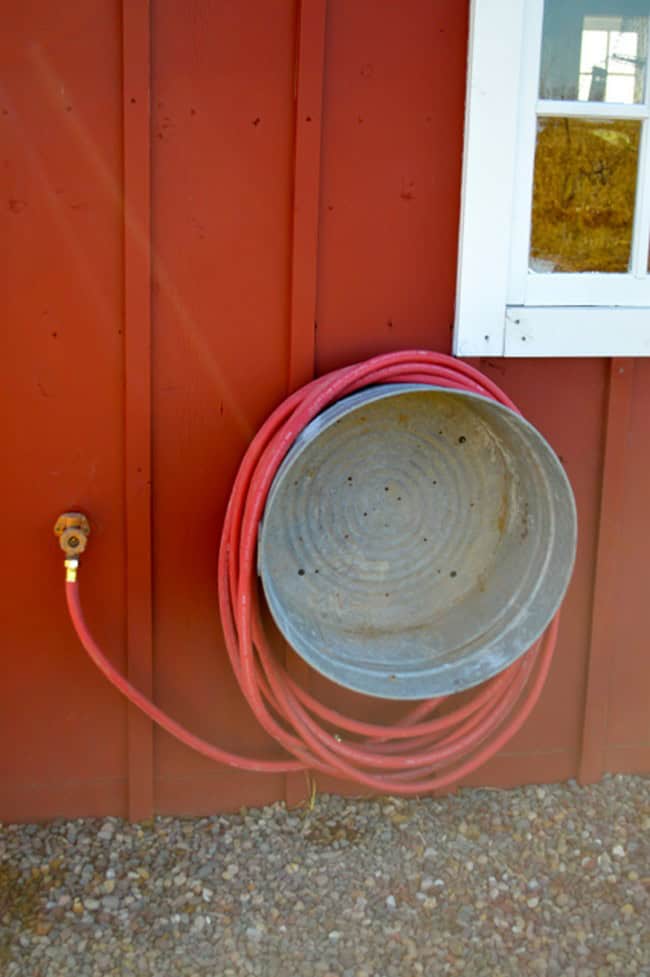

Upcycled Garden Hose Storage

Upcycled Garden Hose Storage

Looking for an affordable and easy way to keep your garden hose organized? This DIY garden hose storage project is perfect for you! By upcycling an old metal washbasin, you can create a rustic hanger that will keep your garden tools organized and within reach. The best part about this project is that it only takes a few hours and less than $25 to complete!

To get started, you will need a metal washbasin and screws. You will also need a drill to attach the washbasin to your desired location. This project is easy to complete and requires no special skills or tools. With a little bit of effort, you can create a unique and functional piece of décor that will add charm and character to your garden.

In summary, this upcycled garden hose storage project is an affordable and easy way to keep your garden organized. By following these simple steps, you can create a rustic hanger that will keep your garden tools within reach and add charm to your outdoor space.

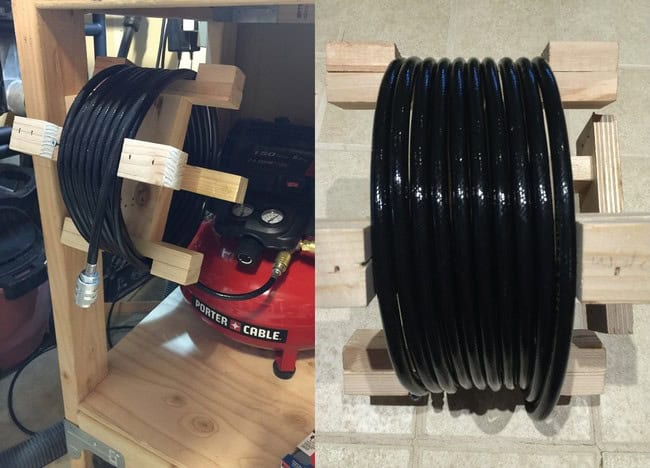

DIY Air Hose Reel

DIY Air Hose Reel

Storing your air hose can be a hassle, but with this DIY air hose reel, you can easily keep your air hose organized and out of the way. The project is relatively easy and can be completed with dimensional lumber, nuts, bolts, washers, and glue. You’ll need basic tools such as a nail gun, drill, and tape measure. While a table saw is the easiest option, any saw will suffice. With a difficulty level of “easy,” this project is perfect for DIYers of all skill levels.

Central Vac Hose Reel

Central Vac Hose Reel

Looking for an easy and efficient way to store your central vacuum system? The central vacuum hose reel is the perfect solution for you. This simple gadget requires only basic supplies found at any home improvement store, such as ¾ plywood, 2”x2” lumber, wood glue, and screws, and can be easily assembled with just a drill and a circular saw.

This hose reel can hold a lot of hose and can be wrapped around the full circumference multiple times without any problem, making it easier for you to reach all the rooms in your house. With a difficulty level of easy, this DIY project can be completed in no time, providing you with a convenient and organized storage solution for your central vacuum system.

Hose Hanger Stand

Hose Hanger Stand

If you’re tired of your garden hoses getting tangled and messy, then this easy-to-follow DIY plan set for the Hose Hanger Stand is just what you need. This project will help you keep your hoses organized and in one place, making it easy to find them when you need them. The stand is made with treated pine lumber, making it durable and long-lasting. You can also paint or stain it to match your garden decor.

To build this hanger, you’ll need some dimensional lumber, a hose holder, screws, nails, glue, and stain. You’ll also need some tools, including a miter saw, jigsaw, pocket hole jig, chalk line, tape measure, and drill. Don’t worry if you’re not an experienced DIYer – this project is rated as easy, so anyone can do it.

The step-by-step photo tutorial included in this plan set will guide you through the process of building your own Hose Hanger Stand in just 15 minutes. With this innovative design, you can create something unique that suits your style and keeps your garden hoses organized.

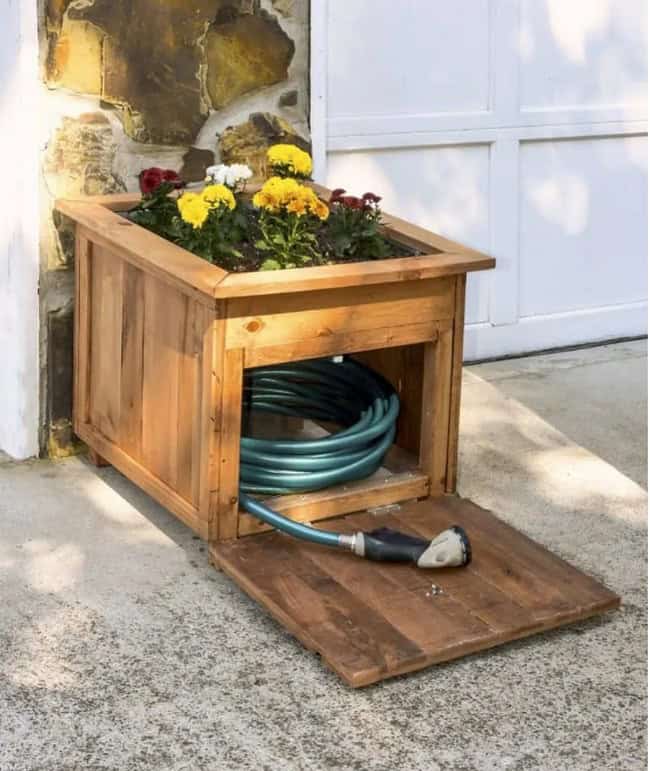

Hose Holder with Wooden Planter

Hose Holder with Wooden Planter

The Hose Holder with Wooden Planter is a stylish and functional addition to any outdoor space. With its modern design, it adds a touch of elegance to your home’s exterior. The planter is made of durable materials, including pallets, 2×2 boards, screws, glue, sealer, hinges, latch, L-brackets, and right-angle brackets. It can hold up to 150 pounds of soil and plants, making it perfect for growing your favorite flowers or herbs.

The modular board design allows you to customize the planter to fit your home’s design. The large hook securely holds the hose, preventing it from dragging on the ground and causing abrasions and tears. The Hose Holder with Wooden Planter is moderately difficult to build, but with the right tools, including a miter saw, planer, Kreg jig, nailer, tin snips, drill, staple gun, and scissors, you can easily complete the project.

Overall, the Hose Holder with Wooden Planter is a unique and practical way to add beauty and functionality to your outdoor space.

Organize your workspace with this DIY air hose reel made from plywood. By co

Air Hose Reel From Plywood

Air Hose Reel From Plywood

nnecting it to a stationary air compressor and placing it high enough in your shop, you can eliminate tripping hazards and create additional storage space. This high-end air hose reel is mounted up out of the way and swivels to make it easy to organize your shop.

To build this air hose reel, you will need a ⅝ sheet of plywood, wooden dowels, trim screws, up to 100’ of air hose, and various hose fittings. You will also need tools such as a drill, router, circular saw, hammer, and drill press. This project has a moderate difficulty level, but the video will walk you through the build process.

Once you have completed this DIY project, you will have a functional and stylish air hose reel that will help you keep your workspace organized and clutter-free.

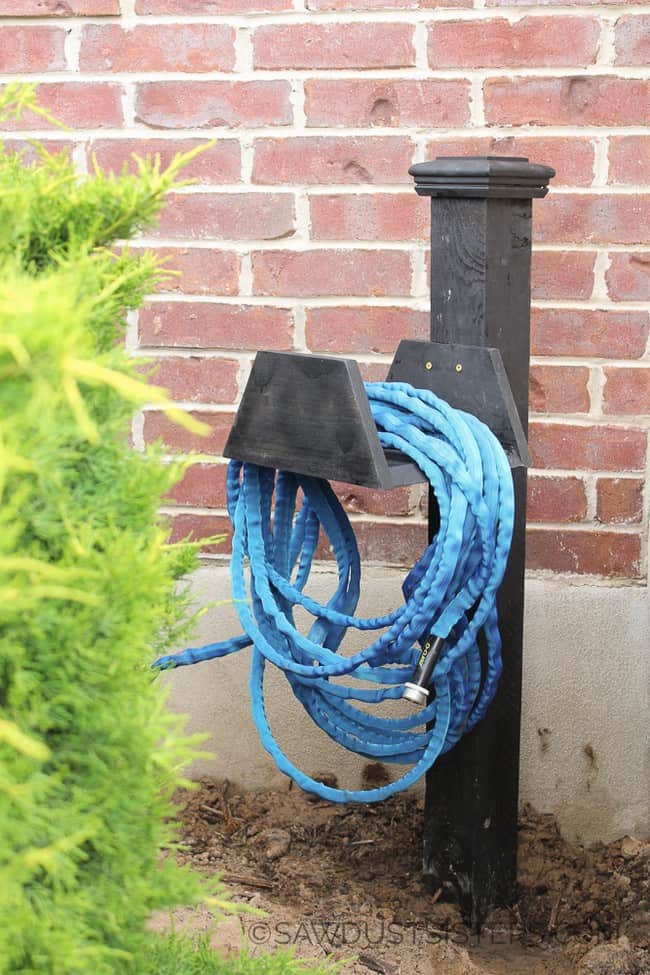

Garden Hose Holder

Garden Hose Holder

If you’re tired of your garden hose getting tangled and dirty on the ground, a garden hose holder is a practical solution. The holder is designed to keep your garden hose organized and securely in place, so you can easily access it when you need it. This sturdy post is made of cedar and stands firmly in the ground without harming any plant life. The holder can withstand even the heaviest hoses and is a great addition to any backyard or patio area.

To construct the holder, you will need a few materials, including a cedar post, post cap, 1×12 board, 1×6 board, spray paint, concrete, level, and water. You will also need some tools, such as a miter saw, Kreg jig, sander, and drill. The difficulty level of this project is moderate, and it will only take a few hours to complete.

Here are the materials and tools you will need to construct your garden hose holder:

Materials

  • Cedar post
  • Post cap
  • 1×12 board
  • 1×6 board
  • Spray paint
  • Concrete
  • Level
  • Water

Tools

  • Miter saw
  • Kreg jig
  • Sander
  • Drill

With these materials and tools, you can easily construct a garden hose holder that will keep your hose organized and off the ground.

DIY Hose Reel Plans

DIY Hose Reel Plans

Organize your garden hoses and make watering a breeze with a DIY hose reel. We’ve compiled a list of 13 different models that feature various designs, styles, materials, and sizes. Choose from our favorite products or create your own with our easy DIY plans. With a hose reel, you can keep your garden neat and tidy while having your hoses easily accessible. Check out our options and get started on your project today.

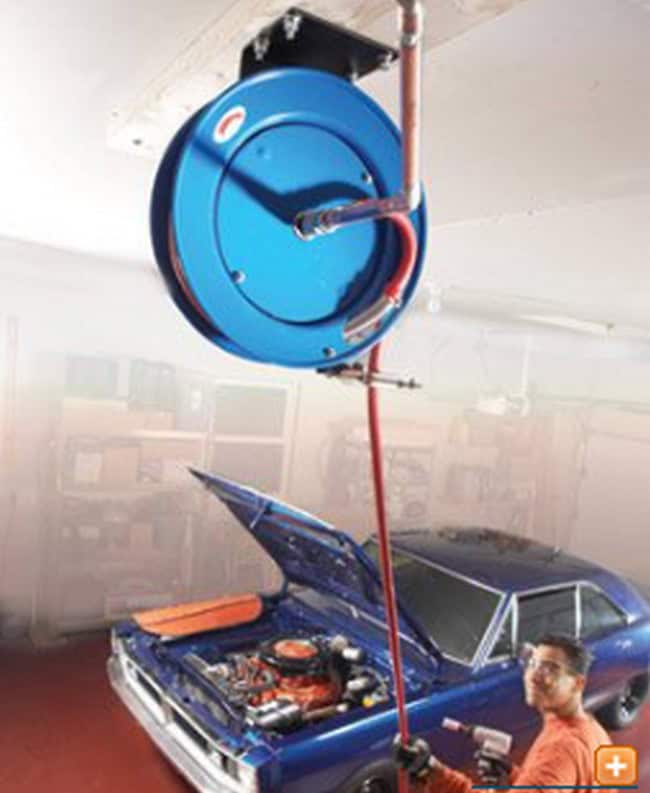

Retractable Hose Reel

Retractable Hose Reel

If you want to store your air hose out of harm’s way, a retractable hose reel is a great option. This particular hose reel is designed to be mounted on the roof, and it comes with a copper piping system that runs from your air compressor to the reel. This allows you to store your hose high above ground level, so you don’t have to worry about anyone tripping over it and damaging your air compressor.

To install this hose reel, you will need a few materials, including an air hose reel, air hose, copper tubing, fittings, and dimensional lumber. You will also need a variety of tools, such as an adjustable wrench, air compressor, circular saw, drill, soldering torch, stud finder, tape measure, and tube cutter.

The installation process is moderate in difficulty, but we will provide you with step-by-step instructions on how to safely install our product on any flat surface, including brick walls, wood siding, and concrete blocks. The copper pipe is attached to the side of the reel, while the end of the copper pipe attaches to your air compressor’s regulator valve using garden hose fittings.

Overall, this retractable hose reel is a reliable and convenient solution for storing your air hose.

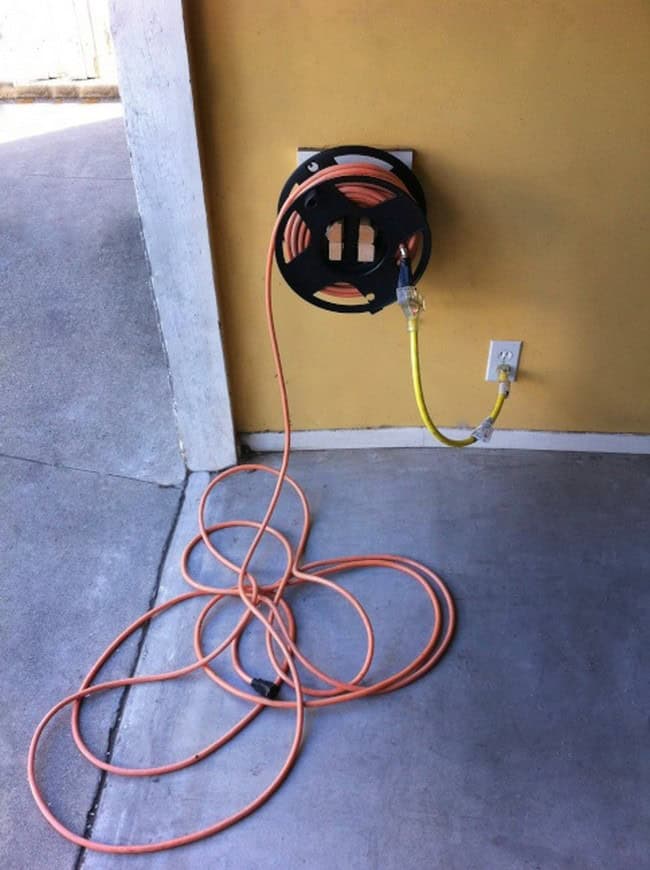

Extension Cord Winder Mount

Extension Cord Winder Mount

If you’re tired of dealing with tangled extension cords, the Extension Cord Winder Mount is the perfect solution. This innovative tool is designed to make coiling your cords a breeze. The cord winder mounts securely to the wall, providing a safe and easy way to wind up your power cables. With this easy-to-use tool, you can quickly store your extension cord and have it ready whenever you need it.

Here’s what you’ll need to make your own Extension Cord Winder Mount:

Materials Tools
Dimensional lumber Hand saw
Plywood Drill
Screws Chisel
Drywall screws and anchors
Cord wheel
Extension cord

This project is rated as “Easy” and can be completed with basic woodworking skills. Say goodbye to tangled cords and hello to a more organized workspace with the Extension Cord Winder Mount.

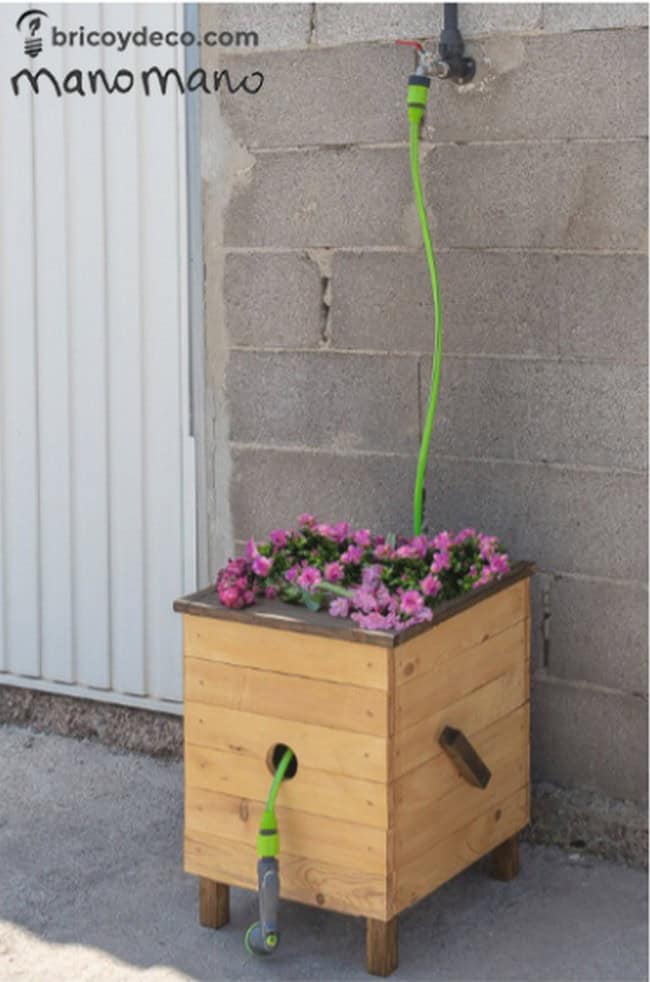

Planter Box with Hose Reel

Planter Box with Hose Reel

If you’re looking for a functional and stylish way to keep your plants hydrated, a planter box with a hose reel might be just what you need. This project is perfect for those who want to make the most of their garden space without sacrificing style. The stand-alone design makes it easy to move the planter box from spot to spot or store it away when not in use.

To build this planter box with a hose reel, you will need dimensional lumber, stain, plywood, screws, nails, glue, and cable ties. You will also need a miter saw, drill, nailer, clamps, paintbrush, and coping saw. The difficulty level of this project is moderate, but with the right tools and materials, you can easily complete it.

The planter box features two watering spigots, one for water and one for the hose reel. This makes it easy to keep your plants hydrated without having to drag a hose around the yard. Plus, the elegant design of the planter box disguises the hose reel, so it won’t detract from the beauty of your garden.

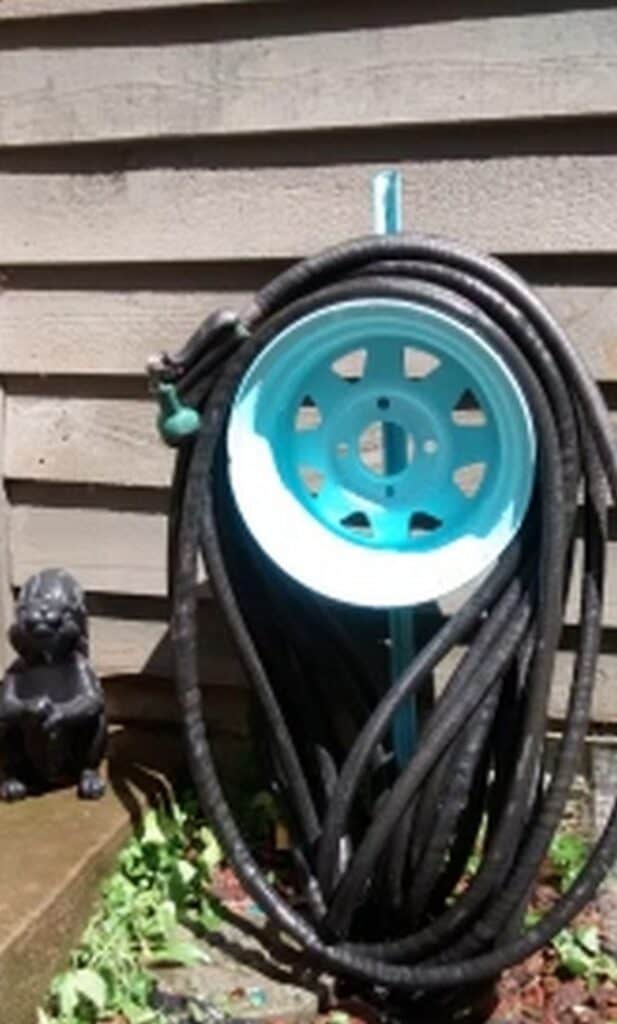

Hose Reel

Hose Reel

A Hose Reel is a must-have for any homeowner who wants to keep their garden hose organized and easy to use. This stand is designed to make it easy to move your hose from one location to another, making it perfect for homes with large properties or multiple water sources. The Hose Reel comes with a wheeled cart and a reel arm that can be mounted wherever you need it.

To build your own Hose Reel, you will need some dimensional lumber, screws, threaded rod, washers, and nuts. You will also need some tools, including a circular saw, chisel, and adjustable wrench. This project is rated as easy, so even if you’re not an experienced DIYer, you should be able to complete it without any trouble.

With a Hose Reel, you can clean up your yard quickly and easily without having to lug a bulky reel around. It’s the perfect solution for homeowners who want the convenience of portable storage when their hose is not in use.

Summary

When it comes to DIY hose reel plans, there are many options to choose from. You can build a simple hose reel out of wood or PVC pipe, or you can get more creative and build one that doubles as a planter or bench. No matter which plan you choose, make sure to measure your space and consider the weight of your hose before starting your project. With a little effort and creativity, you can have a functional and stylish hose reel that fits your needs.
