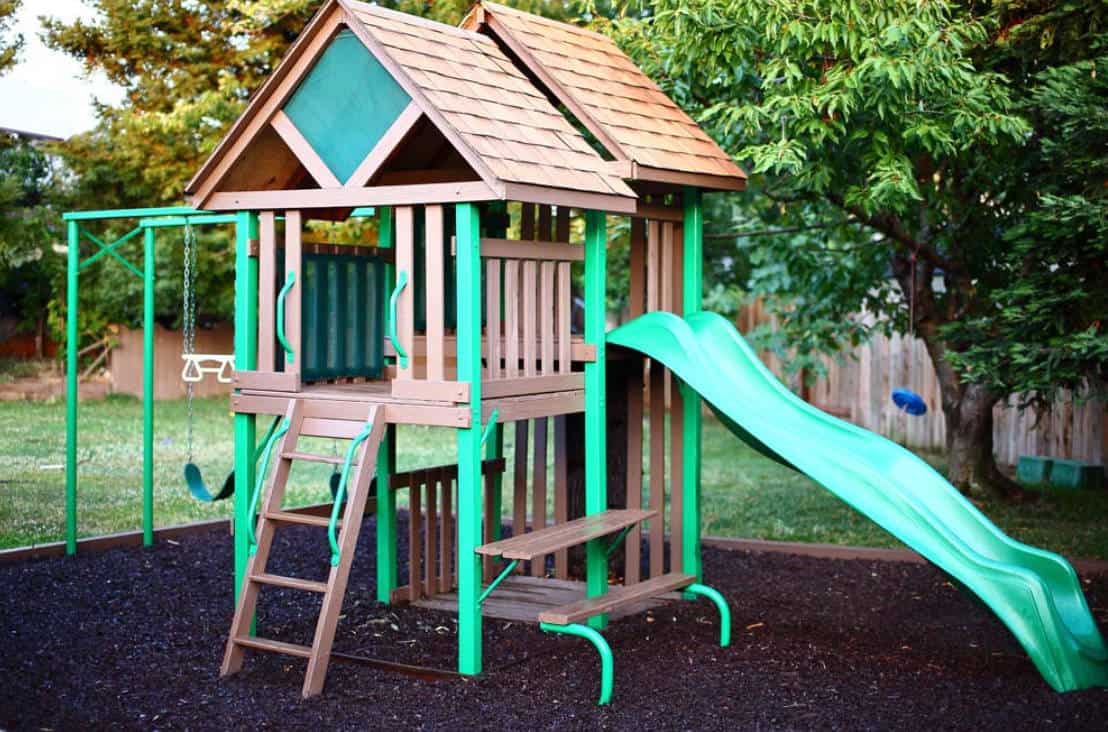

Designing a DIY backyard playground is easier than you think—and far more budget-friendly than pre-built playsets.
With just a few basic tools, some lumber, and a little time, we can build a play space that keeps kids entertained for hours. Let’s walk through every step of the process, from digging the first post hole to sliding down the finished structure.
Why This Plan Works
- Saves hundreds compared to pre-made playsets
- Designed for long-term durability using pressure-treated wood and metal
- Fully customizable to suit your yard and family needs
- Encourages outdoor play, creativity, and social interaction
- Includes swing set, ladder, climbing wall, roofed platforms, and slide
What You Will Need
Lumber and Materials
- 4x4x10′ (x6), 4x4x8′ (x1)
- 2x4x8′ (x12), 2x6x8′ (x1), 2x3x8′ (x12)
- 1x6x8′ (x1), 1x4x8′ (x48)
- 4’x8′-1/2″ Plywood (x2)
- Roof shingles
- Swings (x2), Bar swing (x1), Slide (x1)
- Rock climbing piece (x1), Handles (x6)
- 1 1/2″ x 4″ C-channel (x2), 2 1/2″ Diameter metal posts (x2)
- 1/8″ thick flat bar (x2), 8″ Round concrete form tubes
- Concrete, 1/2″ bolts and nuts, 2 1/2″ & 1 1/2″ deck screws
Tools
- Drill, Miter saw, Skill saw, Sawzall
- Tape measure, Level, Post hole digger

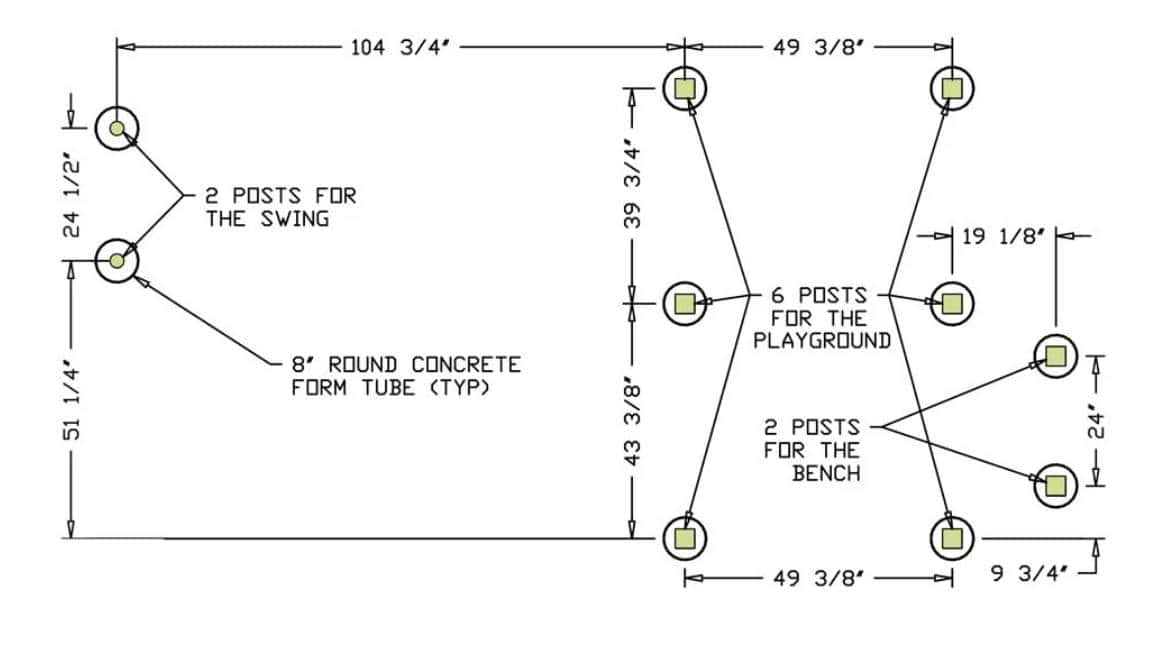

Step 1. Prepare the Ground and Dig Post Holes
Choose a flat 20’x24′ space in your yard. Mark where the main and swing posts will go. Dig 2-foot-deep holes for each using a post hole digger, and insert 8″ round concrete form tubes.

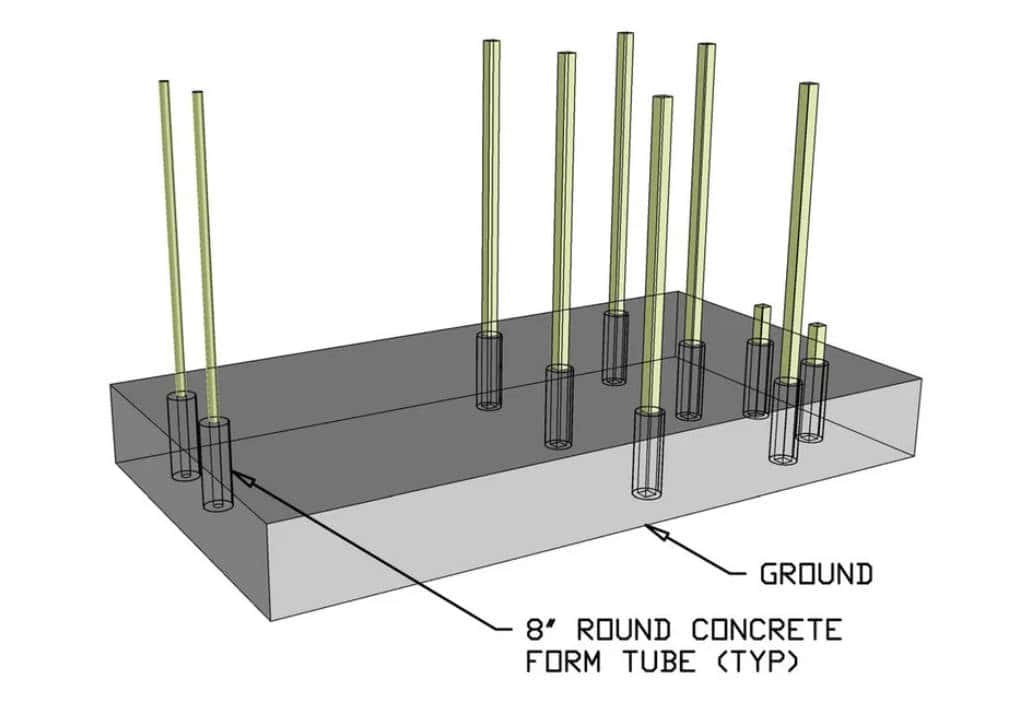

Step 2. Install the Posts
Place 10-foot-long 4×4 posts into the form tubes. For the swings, use 2 1/2″ metal posts instead of wood for longevity. Mix and pour concrete into each form tube and use a level to ensure posts are plumb.
Step 3. Trim Posts to Height
After the concrete sets, use a skill saw to trim the posts to the appropriate height (measured from the ground up). Account for the 2 feet of the post buried underground.
Step 4. Add Ground Floor Supports
From the ground up, measure accurately before cutting to account for any slight shifts during concrete setting. Attach 2×4 and 1×4 boards to the base posts using deck screws.
Step 5.
Lay 1×4 boards across the support frame, spacing them 1/2″ apart. Secure using 1 1/2″ deck screws.

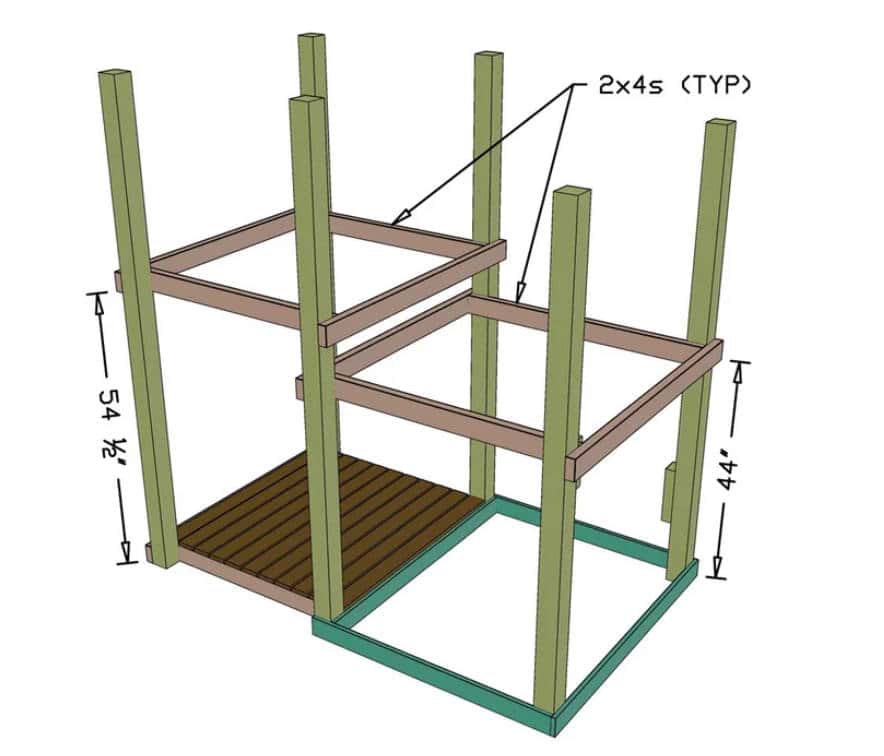

Step 6. Build Second-Floor Supports
Use 2×4 boards to create the second-floor framework. Set the lower deck at 44″ and the upper at 54 1/2″ from the ground.
Step 7. Create the Second-Floor Deck
Attach 1×4 boards for the upper platforms, spaced 1/2″ apart as done for the ground floor.
Step 8. Build Fence Panels
Construct each panel using 1x4s for both rails and pickets. Space pickets 2″ apart and measure between posts for rail length accuracy.

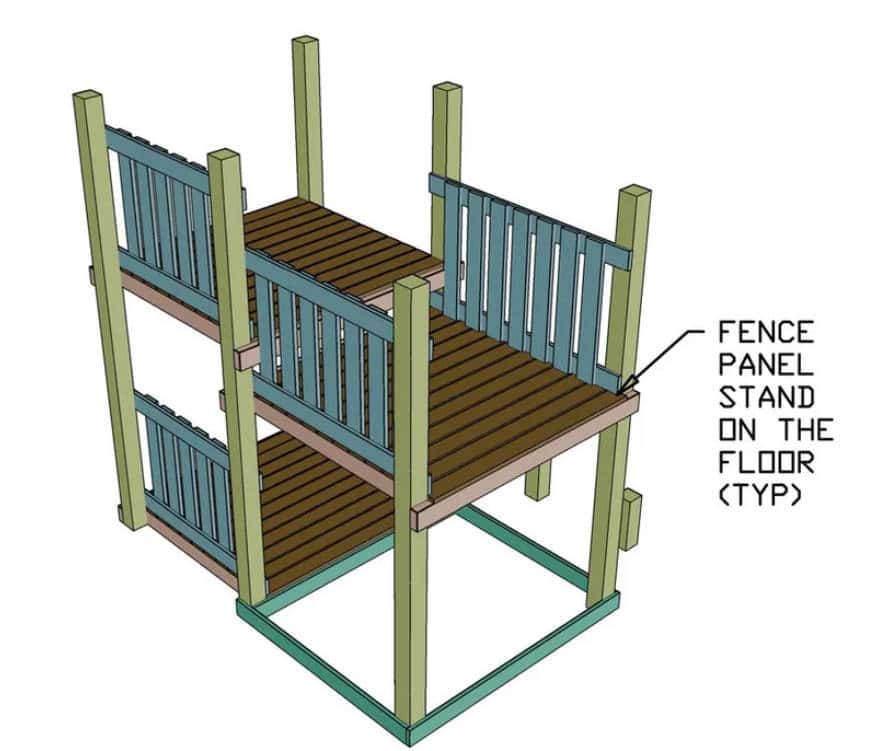

Step 9. Install Fence Panels
Attach the four full panels to the playground posts by securing them to the floor structure.
Step 10. Add Slide Fence Section
Create a small two-picket fence section to border the slide entrance area for added safety.
Step 11. Roof Truss Supports
Attach 70″ long 2x4s across the tops of the posts. These serve as supports for the roof trusses.
Step 12. Frame Rock Climbing Area
On the back center section, reserve a 16″ diameter space for the rock wall. Attach 92″ long 1x4s vertically with 2″ gaps on each side of the opening.
Step 13. Install Rock Climbing Piece
Mount the climbing wall component securely, then add climbing handles around it for grip support.

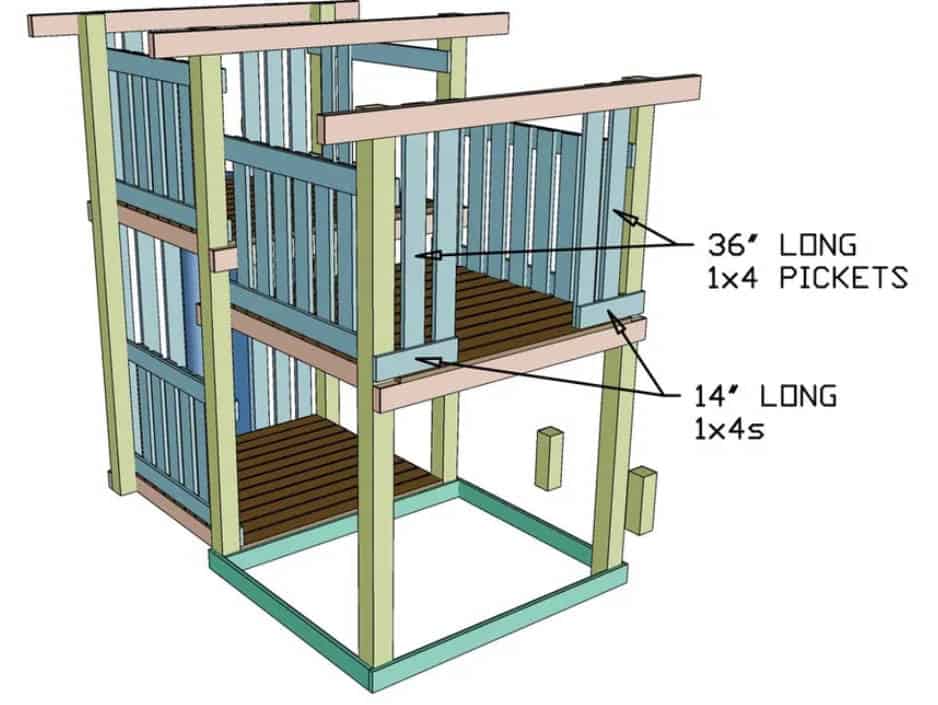

Step 14. Partial Front Fence Panel
Add a partial panel at the front: one 14″ 1×4 at the base and two 36″ pickets spaced 2″ apart.
Step 15. Build Lower Roof Trusses
Using 1x4s and 2x3s, build the left and right sides of the truss separately. Use 45″ fascia boards and 48 1/4″ 2x3s cut at a 45° angle. Screw all parts together, then join both halves.

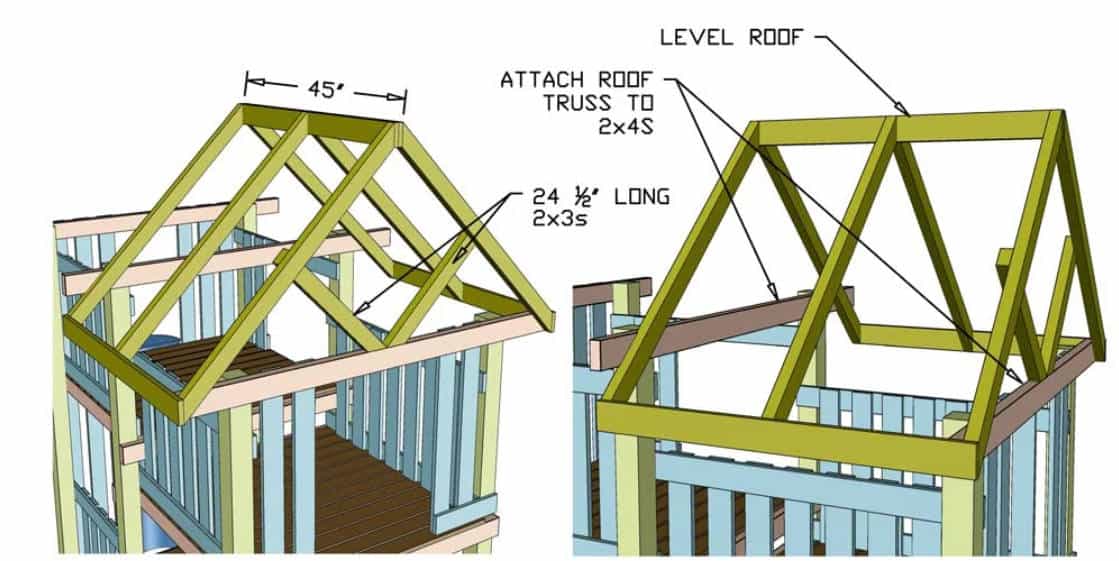

Step 16. Mount Roof Frame
Attach the lower roof frame to the 2×4 supports. Add decorative diamond-shaped 2x3s cut to 24 1/2″ with 45° ends to the truss front.
Step 17. Upper Roof Framing
Repeat the process for the upper roof truss, using 49″ 1x4s. Mount it to the second-story roof supports.
Step 18. Cover Roof with Plywood and Shingles
Secure 1/2″ plywood panels to both roof levels. Finish by adding shingles for weather protection.

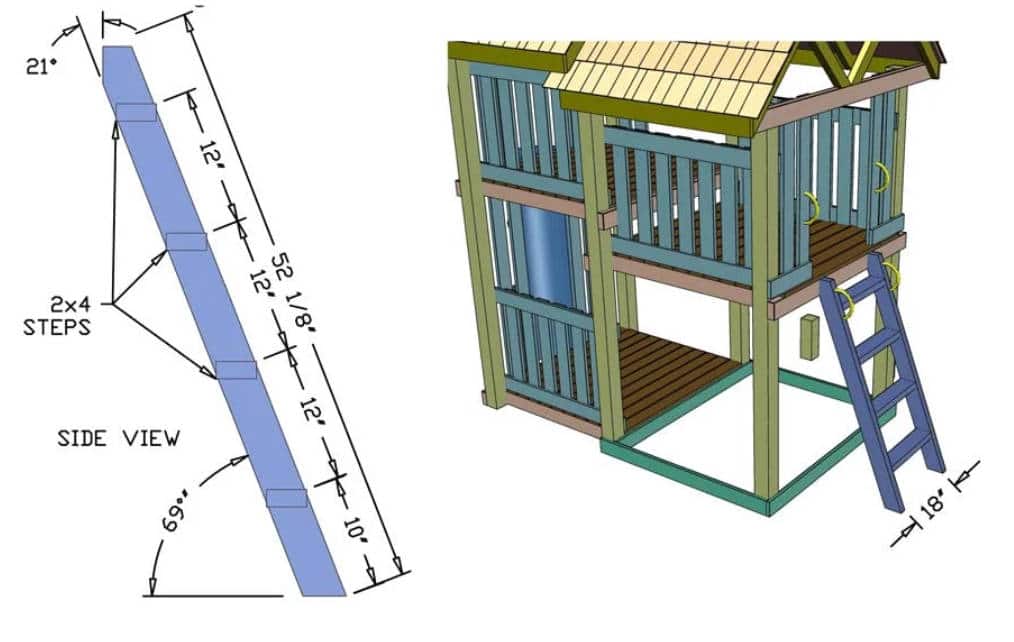

Step 19. Ladder Installation
Cut two 2x4s to 52 1/8″ with angled ends (69° bottom, 21° top). Cut four 18″ step boards. Install the first step 10″ from the bottom, then space the remaining steps 12″ apart. Add ladder handles for safety.

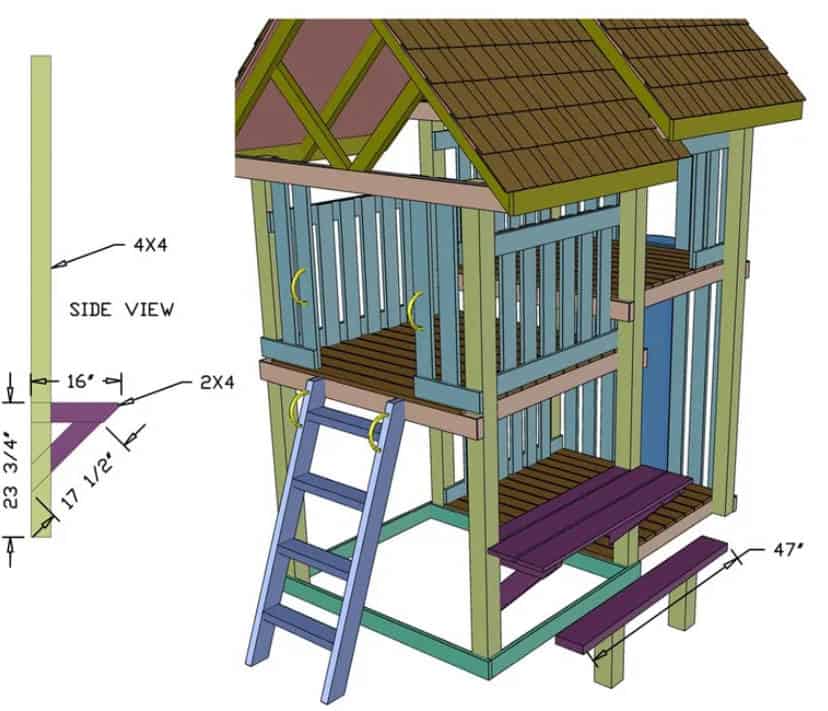

Step 20. Bench and Table
Create triangle supports using 2x4s cut to 16″ and 17 1/2″ at 45° angles. Attach to 4x4s at 23 3/4″ height. Use two 47″ 1x6s for the tabletop and a single 47″ 2×6 for the bench.
Step 21. Swing Beam Installation
Place 1 1/2″ x 4″ metal c-channels across the swing frame. One side rests on 2×4 atop 4×4 posts; the other on round metal posts. Use a Sawzall to cut the c-channel to length.
Step 22. Install Swings
Mount the swings and bar evenly on the c-channel. Atop the round posts, install a cross brace using 1/8″ flat metal bars to stabilize the structure during use.

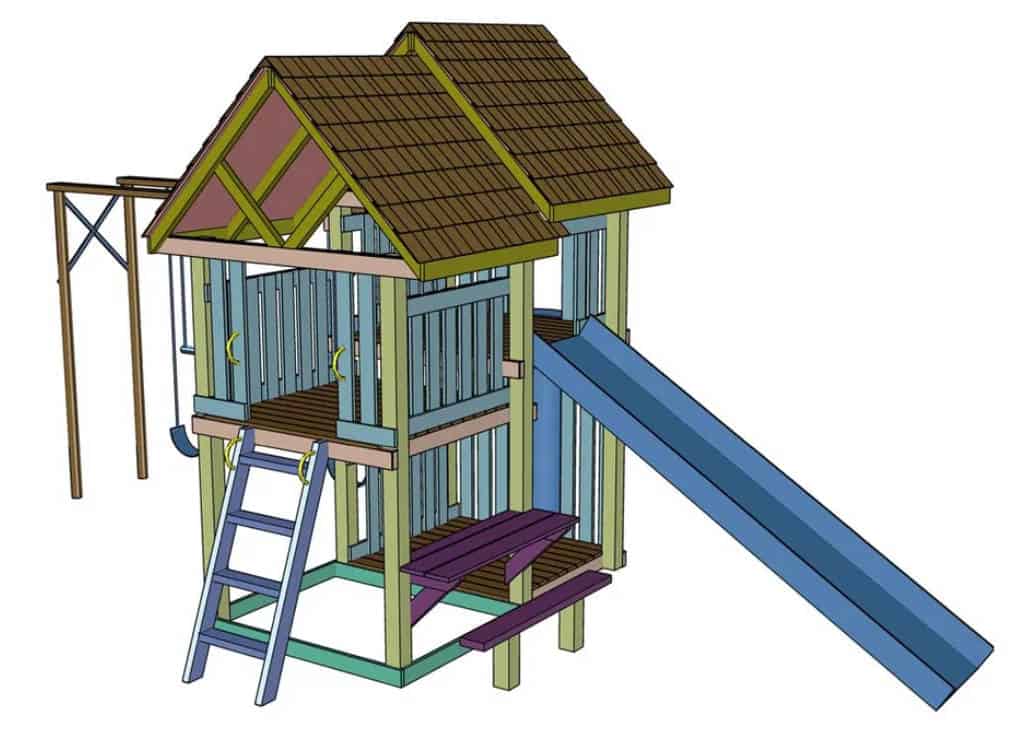

Step 23. Add the Slide
Install the slide at the designated opening. Ensure it’s securely attached and easily accessible.
Note: Always double-check measurements and levels before screwing boards in permanently. Weatherproof all wood components to ensure longevity.
Other Details Display
- Post Height: 10 feet total (8 feet above ground, 2 feet underground)
- Roof Design: Two-tier with shingled plywood covering
- Fence Panels: 4 full panels + partial front and slide sides
- Climbing Wall: 16″ diameter opening with handles
- Ladder: 4-step angled ladder with safety handles
- Materials Used: Pressure-treated wood, redwood, metal c-channels and posts
- Swing Support: Reinforced metal frame with cross-bracing
- Dimensions: Playground footprint approx. 20’ x 24’
Summary
This backyard playground project offers a fun, rewarding DIY experience and can save you hundreds of dollars while delivering a fully customized play space for your kids.
Using basic tools and easy-to-find materials, we can create a safe, weather-resistant setup packed with features—swings, a ladder, a climbing wall, and more—all under one solid roof.
